The FTIR prototype which I am building will be using an acrylic plate which will be mounted in a frame.

I tried to maintain the aspect ratio of a regular screen (4:3). The size of the plate is 41 x 31 cm and about 8 mm thick. The actual area which will be captured is 40 x 30 cm.

Two days after ordering the acrylic plate I received it in a nice package:

In the image below we can see the plate has been cut roughly.

(The plate looks a bit blue but thats due the colour of the protective layer)

Because we want to beam IR light into the sides of the acrylic plate, it is necersaily to polish the sides.

Click the link below to continue reading about how to treat the acrylic plate.
Read the rest of this entry »

For the past several days, I have received parts for constructing my touchscreen prototype which is based on Frustrated Total Internal Reflection (FTIR).

Today I will cover how the lens of the Philips webcam can be dismounted and replaced by one without an infrared (IR) blocking filter.

Most consumer webcams contain an IR filter which will prevent IR light coming through. This is done to prevent image distortion. However in our case we want to capture the IR light. On some webcams it’s possible to remove the IR filter (which is behind the lens and often has a red colour). With our current webcam from Philips this isn’t possible. Therefor a new camera lens has been ordered on eBay.

It was called “4.3MM 4.3 MM CCTV Camera board Lens IR DVR NEW”

Some specifications of the new camera lens:
* Glass Lens
* Focal length: 4.3 mm
* Aperture F/1.8
* Image format 1/3 inch
* Angel of view 68°
* Mount M12 x P0.5
* Size ?14×14.75

Click the link below to continue reading about how to replace the camera lens.
Read the rest of this entry »

Perhaps you noticed an article about multi-touch screen devices which I posted sometime ago.

Inspired by the movies and publications of Jeff Han and Mitsubishi (Diamond touch table) I will be doing my master thesis research project on multi-touch gesture recognition and processing.

At this moment I do not have a multi-touch panel yet, hopefully at the end of this month I will have a working prototype.

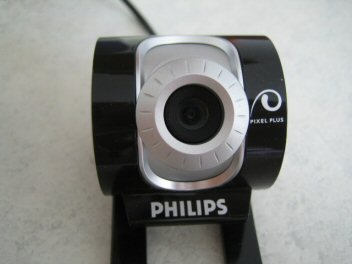

A Philips SPC900NC webcam which will be modified for multi-touch project.
