How to setup openFrameworks for Android on Windows

Notes

This is a tutorial on how to setup openFrameworks for Android on Windows. The current tutorial only explains how to do this using Linux or Mac OS X.

* update October 2011 *
Instead of patching the files manually, you can now do a checkout from: https://github.com/falcon4ever/openFrameworks (Make sure you select the Development Branch)

After downloading the source code, you can skip step 4, 5 and 6.

Last update: 26-10-2011

Requirements

Eclipse (with CDT plugin)
Installed JDK (Java SE 6 Update 26) – I recommend downloading the x86 version. Please note that Java SE 7 won’t work.
Android SDK
Installed ADT Plugin for Eclipse
Android NDK (this tutorial uses r6)
Apache ANT

Quick fix

If you don’t want to patch every file manually, you can just unzip this file in your to the directory in which you’ve placed OF (e.g. C:\temp): openFrameworks Makefiles for windows (149)
I do recommend checking the steps below in order to setup your programming environment. Of course you can skip the parts where I tell you to replace certain parts in the Makefiles. If you’ve installed the SDK, NDK or ANT in a different folder, you will need to edit the file paths.make.

Setup environment

1. Install MinGW/MSYS

Install MinGW and MSYS according to this tutorial:
How to install MinGW, MSYS and Eclipse on windows
(Don’t forget to install the ADT plugin as well)

2. Setup SDKs and PATHS
After downloading the Android NDK, the Android SDK and Apache ANT, unzip them to the following locations:

C:\Development\android-ndk-r6
C:\Development\android-sdk
C:\Development\apache-ant-1.8.2

note: The locations don’t need to match these, but it is best to put them in a similar location.

If you used the SDK installer instead of the zip package, you might want to create a symbolic link to prevent issues with spaces in the path. Run cmd.exe as Admin:

cd\Development
mklink /D android-sdk "C:\Program Files (x86)\Android\android-sdk"

3. Setup JDK

Add C:\Program Files (x86)\Java\jdk1.6.0_26\bin to the PATH variable (if you are using a different version of the JDK, adjust the path accordingly)

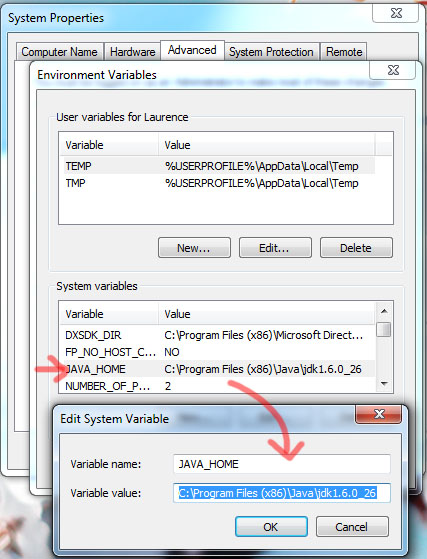

Set the JAVA_HOME system variable to the directory of your JDK installation

4. Download openFrameworks from Github

Download the latest zippackage: openFrameworks GIT *
Unzip the content to C:\temp\OF\

*don’t use the 007 package from the download page, it is missing some files which will prevent you from importing the projects into Eclipse.

5. Edit the paths.make file
Use a text editor to open up this file:
C:\temp\OF\libs\openFrameworksCompiled\project\android\paths.make
Change the content to:

NDK_ROOT=C:/Development/android-ndk-r6
SDK_ROOT=C:/Development/android-sdk
ANT_HOME=C:/Development/apache-ant-1.8.2
ANT_BIN=$(ANT_HOME)/bin/

If you use different versions, be sure to set the correct path!

5. Fixing the openFrameworks Makefile
Use a text editor to open up this file:
C:\temp\OF\libs\openFrameworksCompiled\project\android\makefile

Since the current Makefile does not check if the platform is Windows, we slightly modify the if else statement.

Find this:

ifeq ($(findstring Android,$(MAKECMDGOALS)),Android)
	include paths.make
	ARCH = android
	ifeq ($(shell uname),Darwin)
		HOST_PLATFORM = darwin-x86
	else
		HOST_PLATFORM = linux-x86
	endif
endif

Replace with this:

ifeq ($(findstring Android,$(MAKECMDGOALS)),Android)
	include paths.make
	ARCH = android
	ifeq ($(shell uname),Darwin)
		HOST_PLATFORM = darwin-x86
	else ifeq ($(shell uname),MINGW32_NT-6.1)
		HOST_PLATFORM = windows
	else
		HOST_PLATFORM = linux-x86
	endif
endif

6. Fixing makefiles of the example projects
In the previous step we only fixed the makefile for the openFrameworks library. We will also need to apply the same fix to all of the example projects.

Open up these files:

C:\temp\OF\apps\androidExamples\androidAssimpExample\Makefile
C:\temp\OF\apps\androidExamples\androidAudioExample\Makefile
C:\temp\OF\apps\androidExamples\androidCameraExample\Makefile
C:\temp\OF\apps\androidExamples\androidEmptyExample\Makefile
C:\temp\OF\apps\androidExamples\androidFontExample\Makefile
C:\temp\OF\apps\androidExamples\androidImageExample\Makefile
C:\temp\OF\apps\androidExamples\androidOpenCVExample\Makefile
C:\temp\OF\apps\androidExamples\androidPolygonExample\Makefile
C:\temp\OF\apps\androidExamples\androidTouchExample\Makefile
C:\temp\OF\apps\androidExamples\androidVBOExample\Makefile

Find this:

ifeq ($(findstring Android,$(MAKECMDGOALS)),Android)
	include $(OF_ROOT)/libs/openFrameworksCompiled/project/android/paths.make
	ARCH = android
	ifeq ($(shell uname),Darwin)
		HOST_PLATFORM = darwin-x86
	else
		HOST_PLATFORM = linux-x86
	endif
endif

Replace with this:

ifeq ($(findstring Android,$(MAKECMDGOALS)),Android)
	include $(OF_ROOT)/libs/openFrameworksCompiled/project/android/paths.make
	ARCH = android
	ifeq ($(shell uname),Darwin)
		HOST_PLATFORM = darwin-x86
	else ifeq ($(shell uname),MINGW32_NT-6.1)
		HOST_PLATFORM = windows
	else
		HOST_PLATFORM = linux-x86
	endif
endif

In addition to the fix above, we will need to add another fix:
Find this (Section AndroidInstall, somewhere at the bottom of the file):

$(SDK_ROOT)/tools/android update project --target $(NDK_PLATFORM) --path $(PROJECT_PATH)
ant debug

Replace with this:

if [ "$(shell uname)" = "MINGW32_NT-6.1" ]; then \
cmd //c $(SDK_ROOT)/tools/android.bat update project --target $(NDK_PLATFORM) --path $(PROJECT_PATH); \
$(ANT_BIN)/ant debug; \
else \
$(SDK_ROOT)/tools/android update project --target $(NDK_PLATFORM) --path $(PROJECT_PATH); \
ant debug; \
fi

The Makefiles should be working on all supported platforms.

7. Open Eclipse

Workspace location: C:\temp\OF\apps\androidExamples

8. Set eclipse java compiler compliance to 1.5

Window > Preferences > Java > Compiler

9. Set Android SDK Location

Window > Preferences > Android
Enter: C:\Development\android-sdk (Or use the one in program files)
It should list the Android 2.2 target, if not, use the Android SDK and AVD manager to install it.

10. Import openFrameworks into Eclipse
Import the following projects (existing projects option in the import dialog):

C:\temp\OF\libs
C:\temp\OF\libs\openFrameworks
C:\temp\OF\addons\ofxAndroid\ofAndroidLib
C:\temp\OF\apps\androidExamples

11. Switch to the C++ view

Window > Open Perspective > Other > C++
Select the openFrameworks project on the left
Click the hammer icon (the triangle) to change the build target from Linux to Android
Click the hammer icon to build the project (This might take a while to build).

When it is done, check the following location: C:\temp\OF\libs\openFrameworksCompiled\lib\android

It should contain the following files:

libopenFrameworks.a
libopenFrameworksDebug.a
libopenFrameworks_arm7.a
libopenFrameworks_neon.a

Manage run configurations

Select a project on the left (e.g. androidPolygonExample)
Run > External Tools > External Tools Configuration

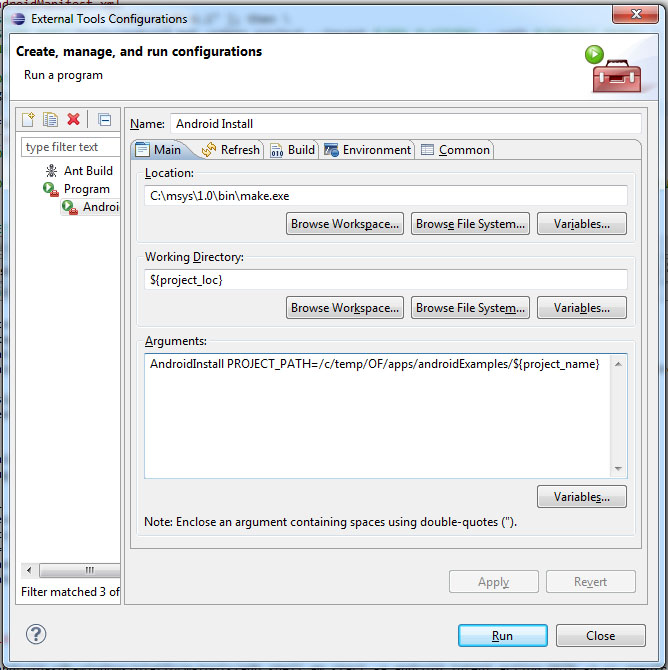

The following dialog should now appear:

Select program and press New, name the new configuration: Android Install

On the Main tab, use these settings:

Location: C:\msys\1.0\bin\make.exe (or C:\MinGW\msys\1.0\bin\make.exe when using the new MinGW installer)
Working Directory: ${project_loc}
Arguments:
AndroidInstall PROJECT_PATH=/c/temp/OF/apps/androidExamples/${project_name}

On the Refresh tab, use these settings:

Mark Refresh resources upon completion
Select The selected resource

On the Build tab, use these settings:

Mark Build before launch
Select The project containing the selected resource
Mark Include referenced projects

Press Apply and Close

Running an example

Connect your device
Make sure that the device is recognized. You can do this by typing “adb devices” in the commandline (terminal)
( C:\Development\android-sdk-windows\platform-tools>C:\Development\android-sdk-windows\platform-tools\adb.exe devices )
Select an example on the left side
Change the target to AndroidRelease
Run > External Tools > Android Install
Eclipse should start building the application and will transfer the apk file to your Android device (it will automatically launch the app).
Done!

FAQ

Question: I’m getting an error about pkg-config when I try to launch the app (but it works fine)
Answer: http://www.mingw.org/wiki/FAQ
“How do I get pkg-config installed? The difficulty in getting pkg-config installed is due its circular depency on glib. To install pkg-config, you should first install the GTK-runtime, the installer is found at http://www.gtk.org/download/win32.php. The pkg-config binary can be obtained from pkg-config_0.23-3_win32.zip. Place pkg-config.exe in your MinGW bin directory.“

Hints

Depending on your SDK version, you might need to update the project files:

C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\addons\ofxAndroid\ofAndroidLib
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidAssimpExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidAudioExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidCameraExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidEmptyExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidFontExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidImageExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidOpenCVExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidPolygonExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidSoundPlayerExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidTouchExample
C:\Development\android-sdk\tools\android.bat update project --target android-8 --path C:\temp\OF\apps\androidExamples\androidVBOExample

There might be some issues when using NDK r7, if it fails building or linking (e.g. if Logcat says UnsatisfiedLinkError), try using the previous NDK (r6b): android-ndk-r6b-windows.zip
